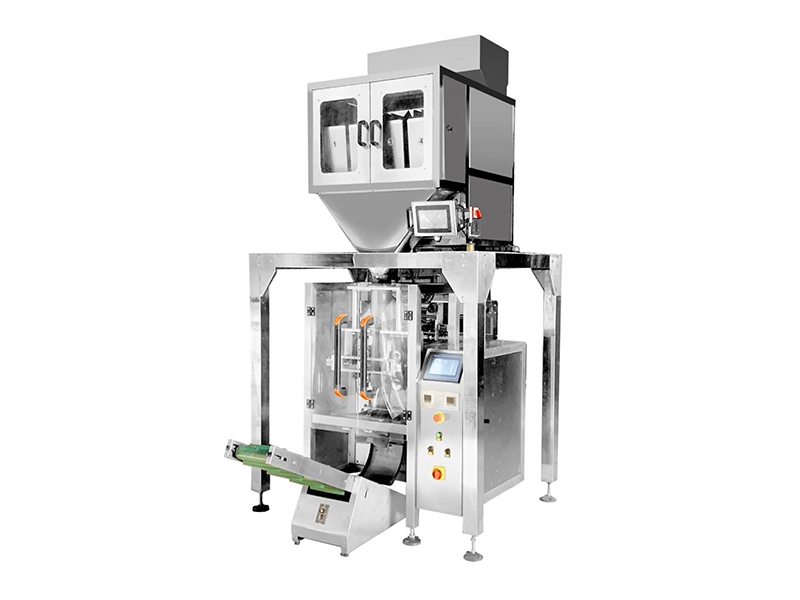

Small mini automatic roll film bag 2-head 4-head weigher vertical granule packing machine

Machine Material: Stainless Steel 304
Weight Capacity: 10–3000g
Packing Speed: 15–50 bags/min
Accuracy: ±0.5–1.5g
Machine Weight: 750Kg
Bag Types: Stand-up, Ziplock, Gusseted, 3/4/8-side seal, Special-shape bags
Application:
Suitable for weighing and packaging irregular lumps and granular products such as nuts, seeds, snacks, grains, dried fruits, frozen foods, candies, and small hardware.

Content

Features

1.SUS304 stainless steel body, customizable to different product sizes

2.PLC control system with user-friendly touchscreen, easy parameter setting

3.Servo motor film pulling for stable and accurate operation

4.Fully automatic feeding, weighing, filling, bag making, sealing, and coding

5.Photoelectric color mark tracking and precise cutting for high accuracy

6.Intelligent PID temperature control with ±1℃ accuracy

7.Multi-language interface (English and others optional)

8.Packaging speed and bag length adjustable with one-touch control

9.Compatible with various filling systems; supports customized configurations

10.Easy cleaning design with reliable pre-sales and after-sales technical support


Application

Suitable for weighing and packaging irregular lumps and granules such as peanuts, nuts, melon seeds, cashews, almonds, potato chips, puffed foods, coffee beans, rice, grains, cereals, dried fruits and vegetables, frozen foods, candies, jelly, snack foods, and small hardware.



Small mini automatic roll film bag 2-head 4-head weigher vertical granule packing machine
TypeYL-B420/520BCS
Max film width420MM/520MM
Bag sizeWidth: 80-250mm, Length: 60-300mmWidth: 80-250mm, Length: 80-390mm
Packing speed15-35bags/min15-35bags/min
Max weight capacity(once)10-2000g10-2000g
Weighing Accuracy(g)±0.5-1.5g
Gas consumption≤0.8m³/min
Power voltage380V/2500W
Weight of machine750Kg
Dimension(L)1500mm×(W)1170mm×(H)1650mm
Standard eight workstations

 1. Upper bag

2. date-printing

3.Bag opening

4. Blanking

5.Reserved

6.Reserved

7. Sealing

8.Finished product and outlet

OptionsHorizontal bagging device/ zipper open/downward pouch opening device/Downward vibration/dust sweep
