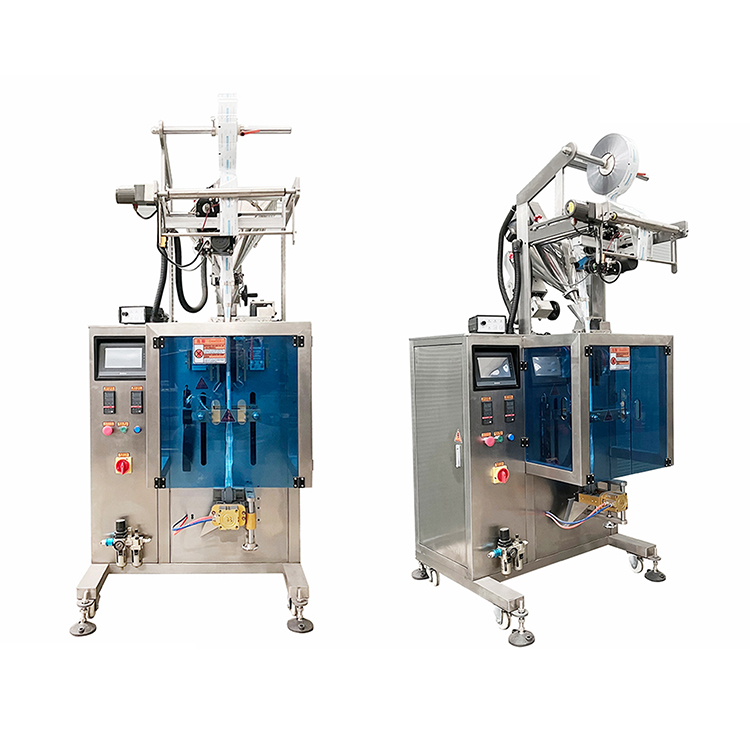

Oblique Push Type 320 Automatic Powder Oblique Screw Packaging Machine

Machine Material: Stainless steel 304
Weight Capacity: 10–3000g
Speed: 15–50 bags/min
Accuracy: ±0.5–1.5g
Weight: 350Kg

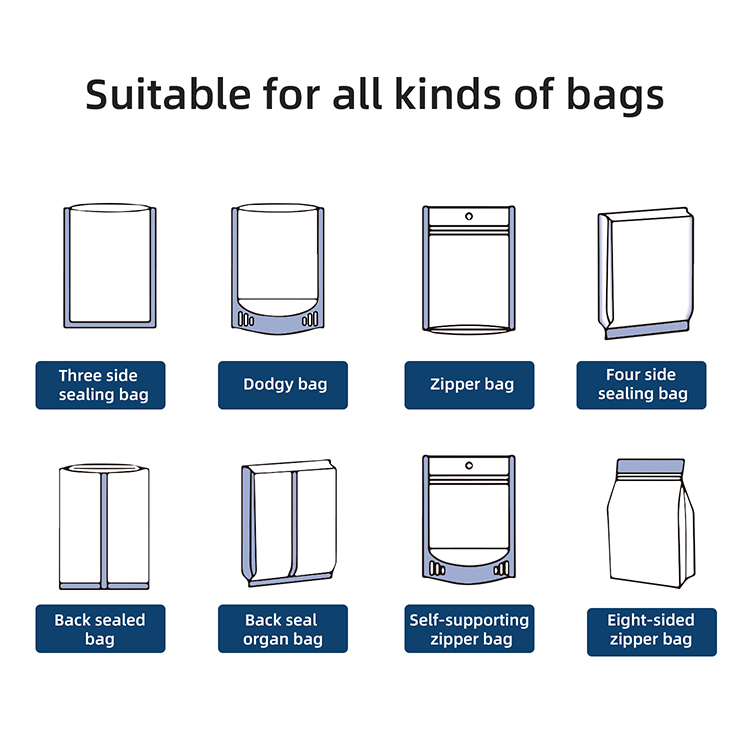

Bag Types: Stand-up, ziplock, gusseted, 3/4/8-side seal, special shapes
Application: Suitable for weighing and packaging various powder materials.

Content

Features


1.Uses an inclined push screw for smooth feeding; sealing area stays powder-free and the large-capacity silo supports continuous production.

2.High weighing precision, stable efficiency, and easy operation for consistent packaging quality.

3.Compatible with multiple roll-film materials, including white PE, matte, metallic, UV, retort pouch, and aluminum foil.

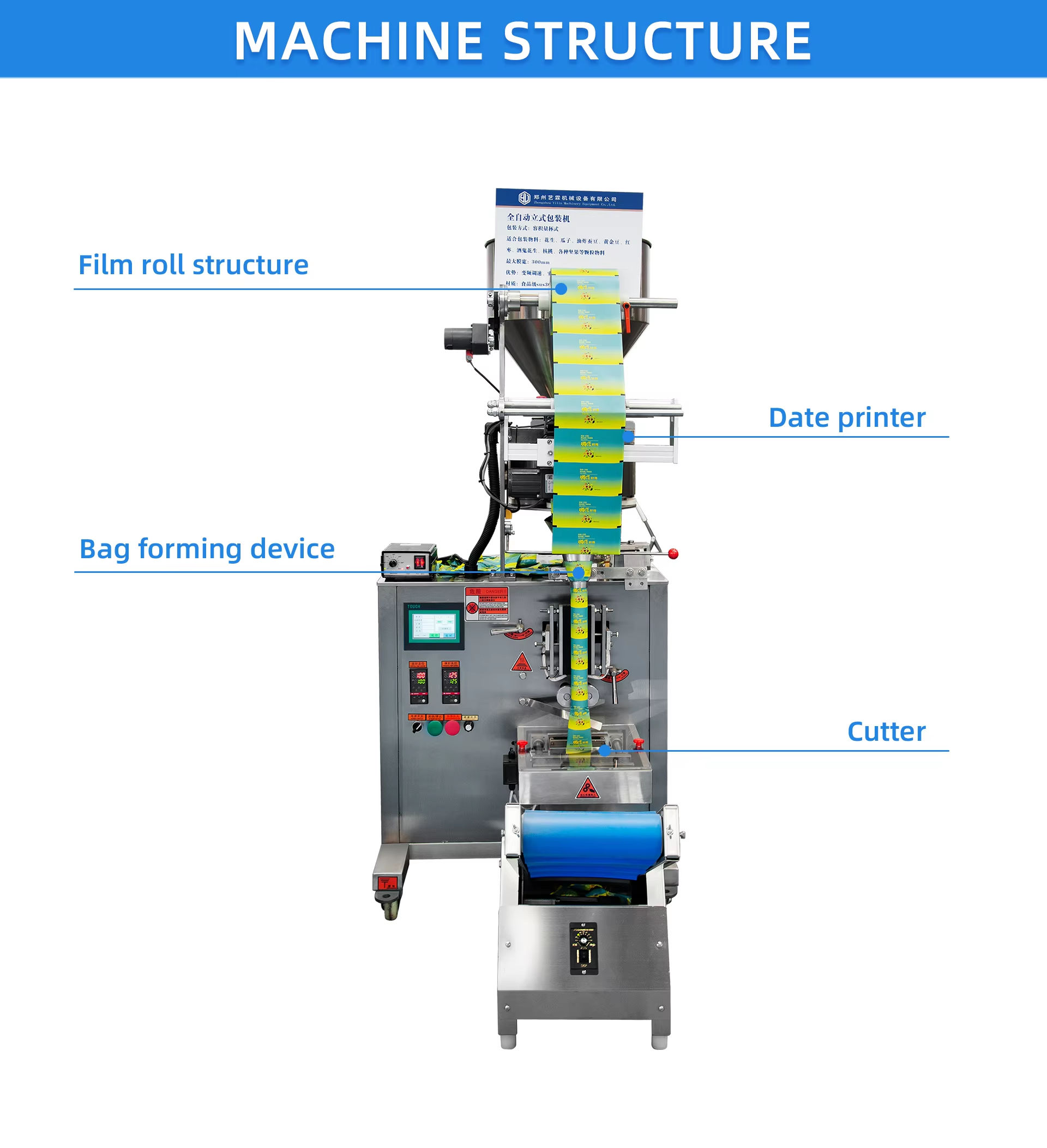

4.Integrated system includes a powder quantitative filler, film roll structure, bag-forming unit, vacuum feeder, and powder-cleaning device.

5.Supports customization and provides full pre-sale and after-sale technical service from our sales and electrical engineers.


Application

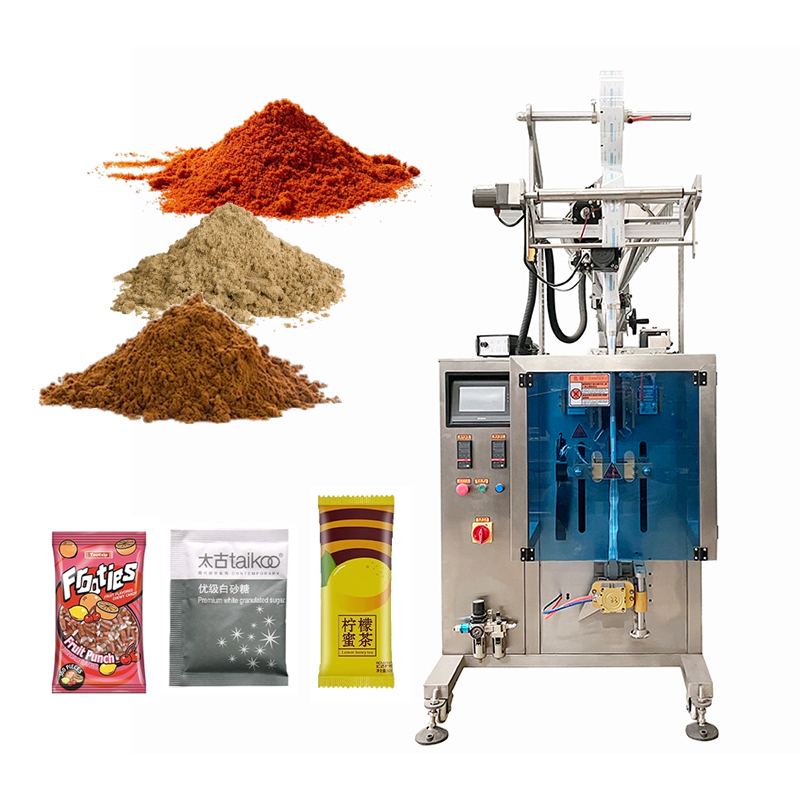

Suitable for weighing and packaging a wide range of powder materials, including milk powder, coffee powder, salt, sugar, rice/wheat/corn/bean flour, washing powder, chemical powders, medical powders, and feed additive powders.


Video
Parameter
Type YL-S320FX
Max width of roll film 300MM
Packing speed 20-60bags/min
Packaging scope measuring and weighing
Bag making form Back seal/Three side seal
Power voltage 220V/1.2KW
Package material OPP/CPP/CE, MST/PET/PE/0.04-0.08M
Options Exhaust device, Fillet cutting tools,clip-pull device/Support customization
Details
