Home > Auger Filler > Fully Automatic Powder Vertical Packaging Machine

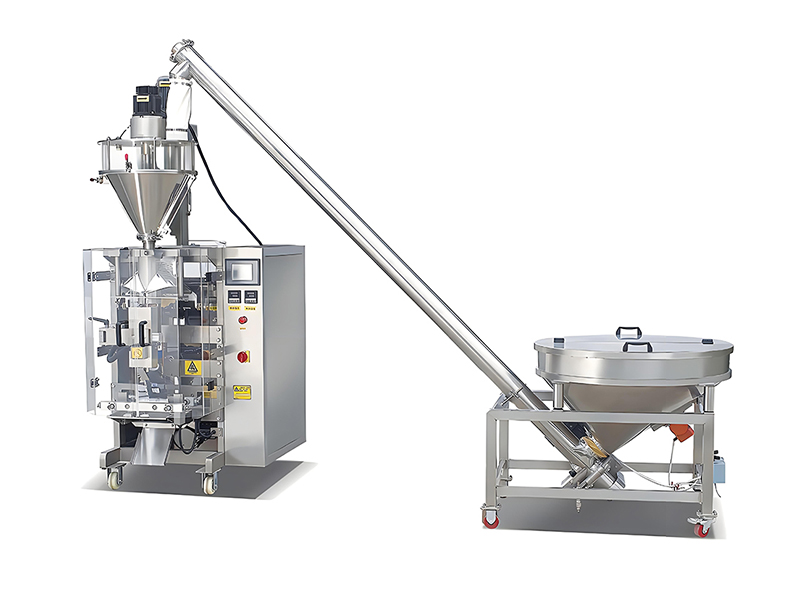

Fully Automatic Powder Vertical Packaging Machine

Material: Stainless Steel 304
Weight Capacity: 10-3000g
Speed: 5-50 bags/min
Accuracy: ±0.5-1.5g
Weight: 750Kg

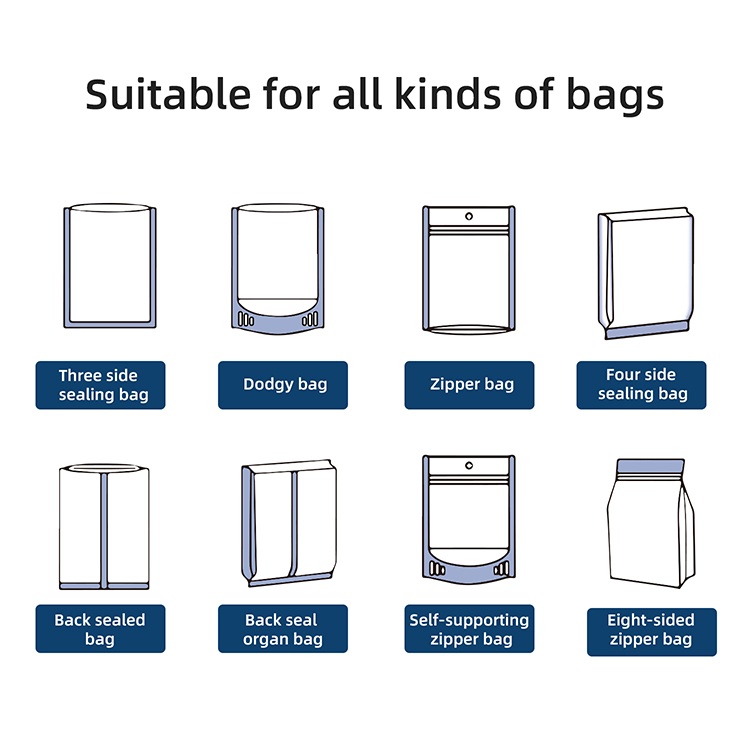

Bag Types: 3-side seal, Stand-up, Ziplock, Special shape, Accordion, Gusseted, 4/8-side seal, Self-standing zipper
Applications:
For packaging powders like milk, coffee, sugar, flour, pet food, washing powder, chemicals, and more.

Content

Features

1.English/Chinese display with PLC + HMI control; fully automatic operation including feeding, weighing, bagging, sealing, labeling, and output.

2.Full 304 stainless-steel structure with durable mechanical components; adjustable clip width and high weighing accuracy.

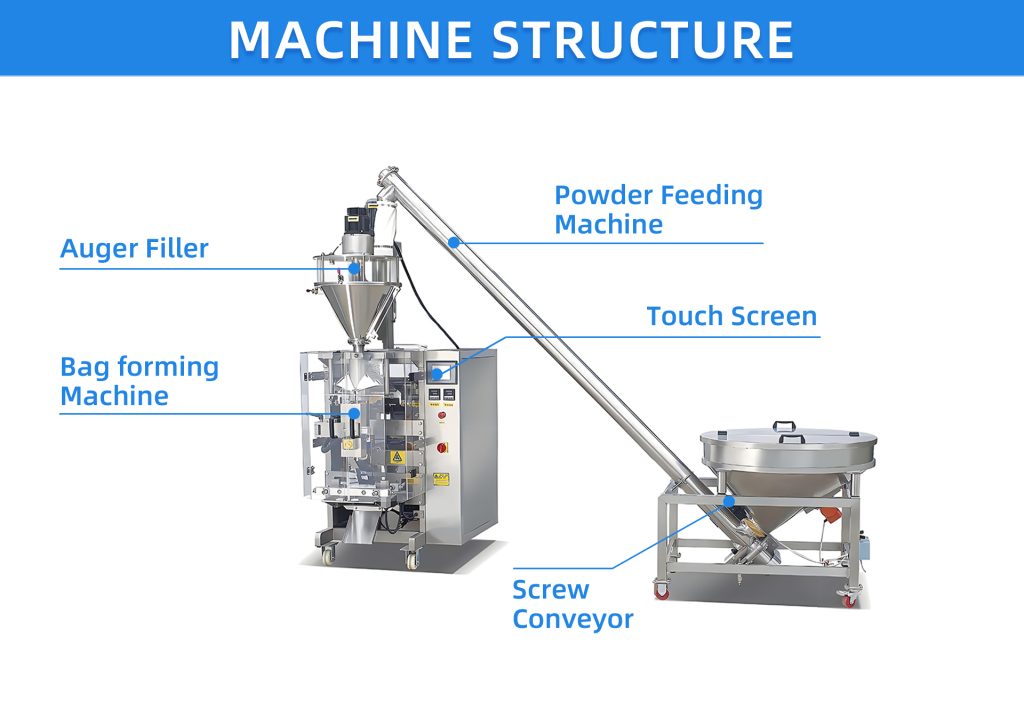

3.Integrated system combining powder packaging machine, screw feeder, combination weigher, and bag former; supports gas flushing, sealing, cutting, and date printing.

4.Customizable for additional filling stations or equipment integration; equipped with a complete alarm system for quick troubleshooting.


Application

Suitable for weighing and packaging powders such as milk powder, coffee powder, salt, sugar, rice/wheat/corn/bean flour, detergent powder, chemical powder, medical powder, and feed additives.


Video
Parameter
Type YL-B420/520FL
Max width of roll film 420MM/520MM
Bag length &width 60-300mm(L),80-200mm(W) 、80-390mm(L),80-250mm(W)
Packing speed 5-30bags/min、5-20bags/min
Max weight capacity(once) 10-1000g、10-2000g
Weighing Accuracy(g) ±0.5-1.5g
Gas consumption 0.6m³/min
Power voltage 220V/2.4KW
Package material OPP/CPP/CE, MST/PET/PE/0.04-0.08M
Details
